Rethinking Signal Flow

Gain Staging, Dry Paths, and Spatial Awareness in LOCKDOWN

Modern electronic production has outgrown the assumptions baked into traditional mixing consoles. Those consoles were designed for an era of noise‑floor battles, limited routing, and corrective processing. Their layout reflects that history: a trim at the top, a fader at the bottom, and a dry‑first signal path that always feeds the master bus.

Electronic musicians don’t work that way any more. FX aren’t decorations - they’re instruments. Sound design happens before the mix, not after it. And producers increasingly work across multiple screens, floating windows, and modular layouts where the console is just one part of a larger creative surface.

LOCKDOWN reimagines the console for this reality. It makes gain staging visible, FX central, and navigation effortless - turning the console into a creative instrument rather than a legacy control panel.

Gain Staging for Modern Workflows

Traditional Consoles

• Trim sets input level into EQs and compressors.
• Channel fader (post‑FX) balances the mix, usually left at unity.
• Dry signal always flows to the master; FX are blended in parallel via aux sends.

This model hides the most important gain decisions behind small knobs and assumes FX are optional embellishments.

LOCKDOWN’s Approach

• Pre‑rack faders act as trims, fully visible and metered.
• Post‑rack faders become collapsible balance controls, with unity as the reference.
• Pattern‑level gain staging gives producers control before the console even begins.

The result is a gain‑staging system that’s explicit, traceable, and intuitive - no hidden knobs, no guesswork, no legacy baggage.

Shared Racks Instead of Buses and Auxes

Traditional consoles divide routing into:

• Buses for grouping
• Auxes for FX sends

LOCKDOWN collapses this into shared racks - modular FX chains that act as both bus and aux.

• One rack = one flow
• Simpler routing
• More powerful FX integration
• A visual model that matches how electronic musicians actually work

This shift reflects a deeper truth: in electronic music, FX aren’t parallel decorations. They’re the sound.

Dry Paths as an Option, Not a Rule

Traditional Consoles

Dry always flows to the master, with FX blended in parallel. This ensures phase safety and gives engineers independent control of dry vs wet.

LOCKDOWN

FX racks are the primary signal path. Dry is optional, enabled via a dedicated gain at the start of the strip. If a pure dry feed is needed, a track can be duplicated into a solo rack.

This mirrors modern workflows where reverb, delay, modulation, and saturation are part of the core sound design - not afterthoughts.

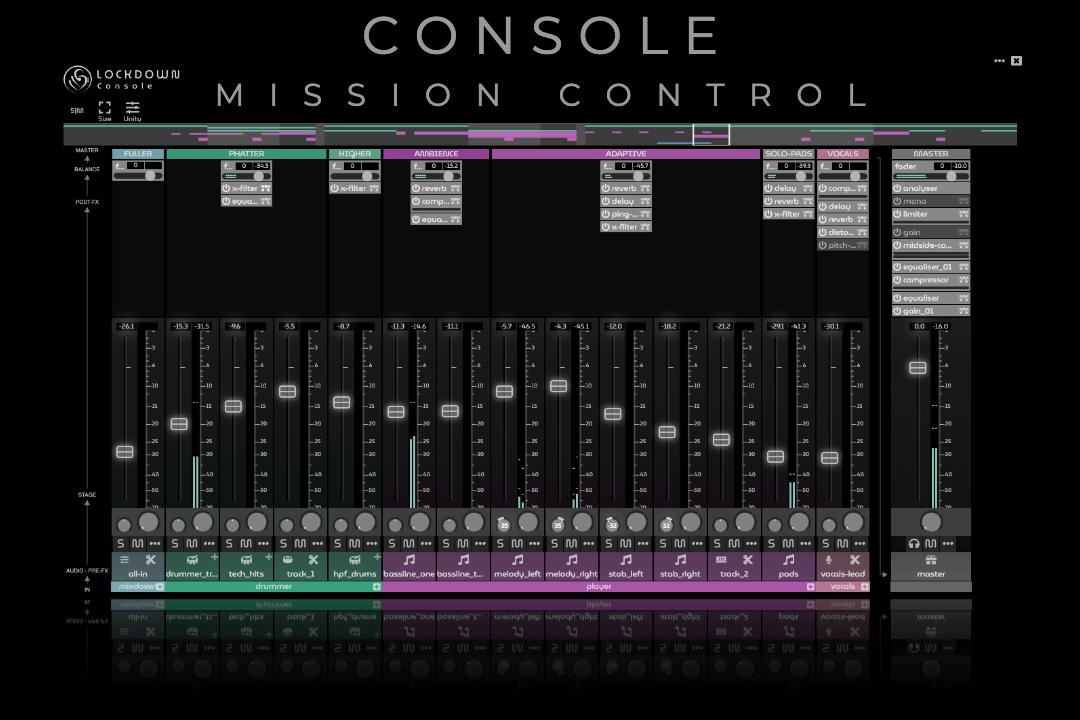

An “Upside‑Down” Console

LOCKDOWN flips the hierarchy of traditional consoles:

• Pre‑rack faders (trims) are central and visible.
• Post‑rack faders (balance) are collapsible.
• Signal flow is easy to trace from sound origin → racks → master.

The controls that matter most are the ones you see first. Everything else stays out of the way until you need it.

Navigating the Mix with the Summary Timeline

As producers move toward multi‑screen and floating‑window setups, a new problem emerges: the console often lives far from the main timeline. Traditional consoles assume the timeline is always visible somewhere else, forcing users to maintain a mental map of where they are in the track while adjusting levels or FX.

LOCKDOWN solves this with a scrubbable summary timeline at the top of the console.

• The entire arrangement is visible as a compact overview.
• Users can jump directly to any moment without hunting for the main timeline.
• Vertical faders and horizontal timelines finally live in the same mental space.

Whether the console is docked, floating, or on a second monitor, the user always knows where they are - and can move instantly to where they need to be.

For electronic music, where mixing and arrangement often blur together, this turns the console into a true navigation surface. Scrubbing feels like cueing a record or nudging a jog wheel: fast, tactile, and musical.

Why This Matters for Electronic Music

Electronic producers shape their sound with FX chains before it ever reaches the console. LOCKDOWN embraces this reality:

• FX racks are the main signal path.
• Gain staging is visible at every stage.
• Dry paths are optional.
• Navigation is built into the console itself.

The result is a console that feels natural to DAW‑native producers and liberating to engineers who grew up on hardware.

Conclusion

LOCKDOWN respects the heritage of mixing consoles but reimagines them for modern workflows. By elevating trims, simplifying routing, making dry paths optional, and adding a scrubbable summary timeline, it turns mixing into a transparent, creative, and spatially intuitive process.

For new producers, it’s a clear introduction to signal flow.

For experienced engineers, it’s a refreshing rethink of console design.

For electronic musicians, it’s a console that treats FX and navigation as instruments — not afterthoughts.
